Quantum Microscope Unveils Water Molecule Dissociation: A Revolutionary Approach to Nanoscale Chemistry
In a groundbreaking development, researchers at Peking University, led by Wentian Zheng, have achieved a remarkable feat by merging quantum sensing with scanning probe microscopy (SPM). This innovative technique, detailed in the journal Physics, has opened a new frontier in our understanding of chemical reactions at the nanoscale. The team has successfully triggered and observed the dissociation of water molecules at a solid-liquid interface, providing unprecedented insights into the intricate processes of nanoscale chemistry.
Quantum Sensing and SPM: A Powerful Alliance

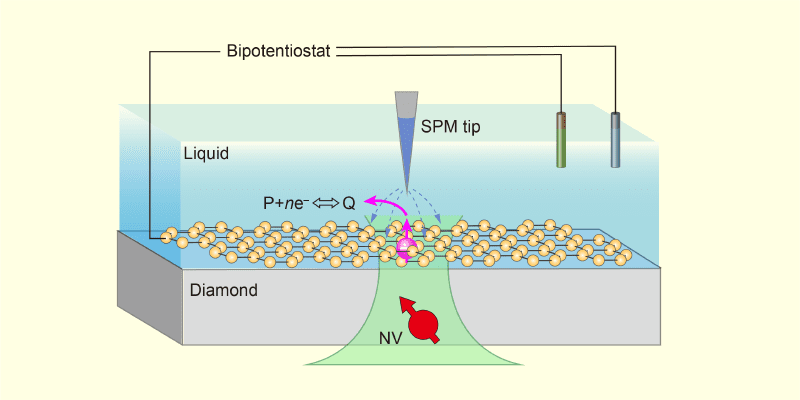

The key to this breakthrough lies in the convergence of quantum sensing and SPM, resulting in the creation of NV-SPM (Nitrogen-Vacancy Scanning Probe Microscopy). This cutting-edge instrument employs nitrogen-vacancy (NV) centers in diamond as built-in electron spin resonance (ESR) sensors, offering a unique ability to trigger and monitor chemical reactions with nanometer precision. By positioning an atomically sharp, electrically biased SPM tip above a shallow NV center, scientists can inject electrons into interfacial water, initiating reactions like water dissociation, while simultaneously tracking the resulting electron and proton dynamics.
The qPlus force sensor plays a crucial role in NV-SPM's stability, enabling its operation even in liquid environments. In a recent demonstration, researchers triggered water dissociation by injecting electrons, observing the formation of hydrated electrons, hydroxide ions, and ultimately hydrogen peroxide. The NV center's ability to detect intermediate species, such as unpaired electrons in hydroxyl radicals, surpasses traditional SPM techniques, providing a comprehensive view of the reaction's progression.
Beyond the Diamond-Water Interface
The NV-SPM architecture is highly adaptable, extending its capabilities beyond the diamond-water interface. By modifying the diamond surface with electrodes, researchers can explore electrochemical reactions, while coating it with 2D materials enables the investigation of diverse solid-liquid reactions. This versatility promises a new era of insight into interfacial chemistry, moving from inference to direct observation of molecular details, with potential applications in materials science, biology, and beyond.
Monitoring Water Dissociation at Interfaces
The NV-SPM's power lies in its ability to detect unpaired electrons, a crucial aspect of interfacial chemistry. Traditional surface analysis techniques often fail to capture these reaction intermediates, which are essential for understanding chemical processes. Zheng and colleagues demonstrated this by monitoring the formation of hydroxide ions and protons resulting from water dissociation, and characterizing proton diffusion within a nanometer-scale volume surrounding the NV center.
NV Centers: Unlocking Nanoscale Sensitivity
Nitrogen-vacancy (NV) centers in diamond are emerging as powerful nanoscale sensors due to their unique quantum properties. These defects, consisting of a nitrogen atom adjacent to a missing diamond atom, exhibit photoluminescence sensitive to their spin state, allowing detection of external stimuli like electric and magnetic fields. NV centers can identify chemical species at interfaces, a capability lacking in many traditional surface analysis techniques, making them invaluable for direct observation of reactions.
Applications and Future Potential
The NV-SPM technique has opened a new chapter in interfacial chemistry, combining quantum sensing with SPM to trigger and observe chemical reactions at the nanoscale. By injecting electrons via a biased tip, the team demonstrated water dissociation at a diamond-water interface, with the NV center acting as a built-in ESR/NMR sensor, detecting unpaired electrons. This localized control and chemical identification represent a significant advancement.
The NV-SPM's potential extends beyond the diamond-water interface. By modifying the surface with 2D materials or electrodes, researchers can investigate a wide range of solid-liquid interfaces and electrochemical reactions. This combined approach promises to revolutionize our understanding of interfacial chemistry, enabling the direct observation of molecular-level processes that were previously inferred through indirect methods.
